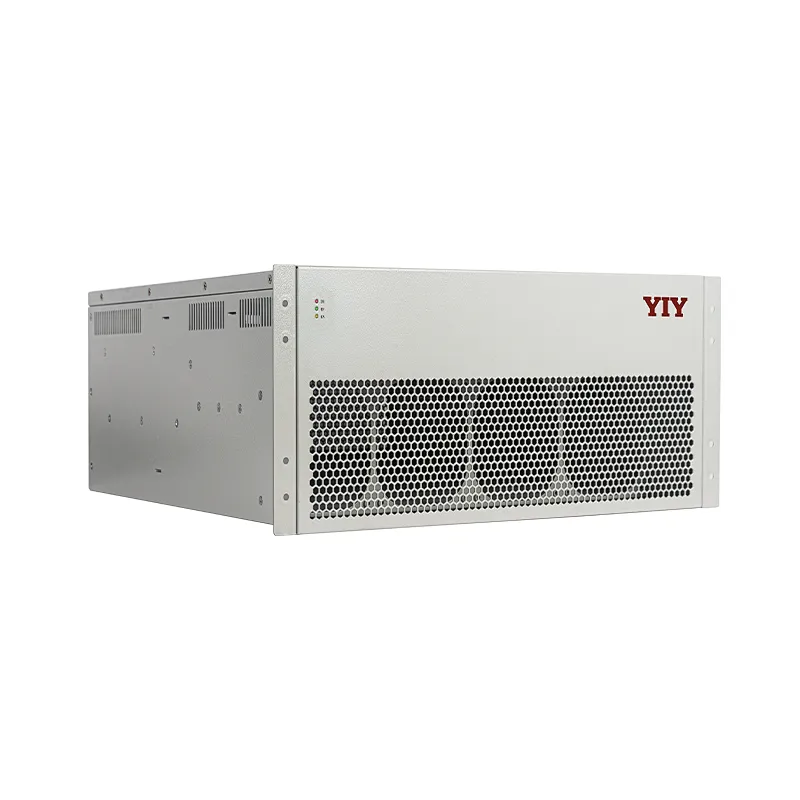

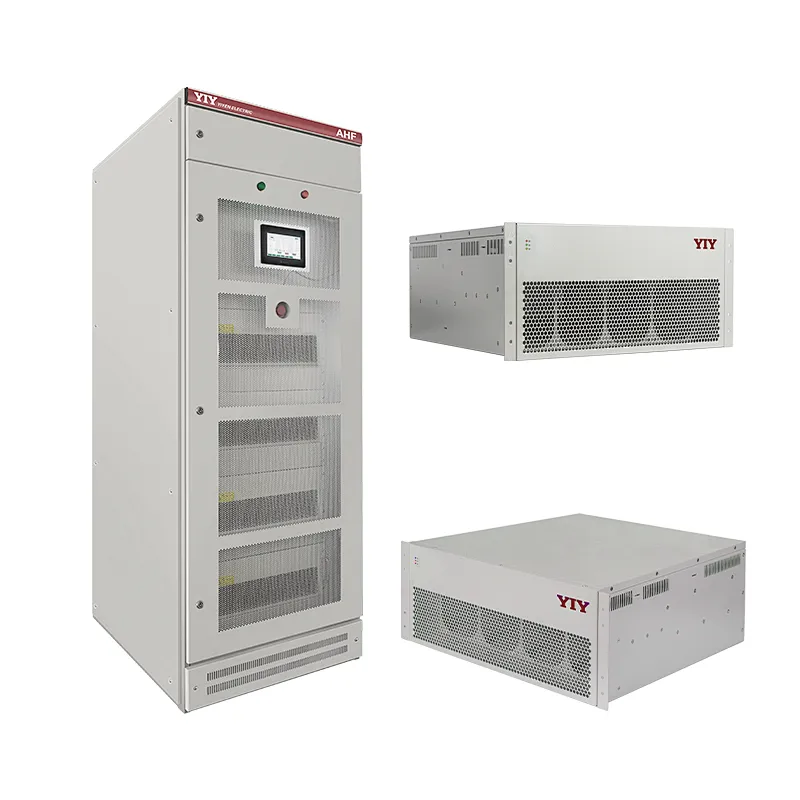

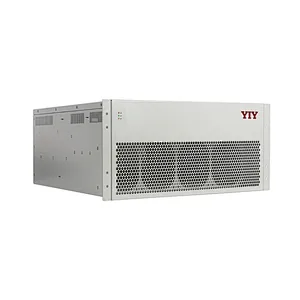

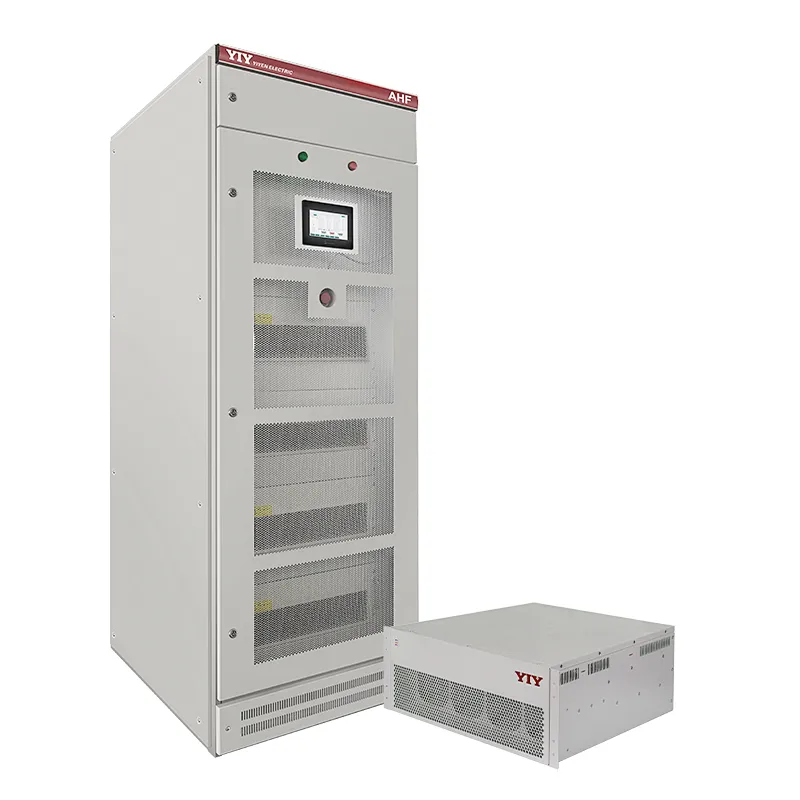

Active Harmonic Filter (AHF)

AHFs eliminate waveform distortions from the loads like harmonics, inter harmonics, notching, and harmonic voltages caused by harmonic currents, by injecting in real-time the distorted current of same magnitude but opposite in phase in the electric power system. In addition, AHFs can take care of several other power quality problems by combining different functions in a single device.

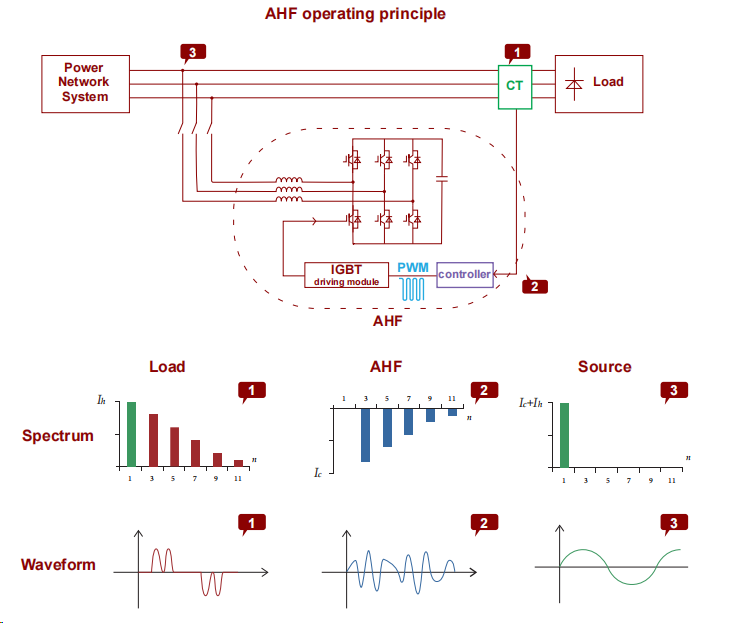

YIY-AHF Working Principle：

External CT detects the load current, DSP as CPU has advanced logic control arithmetic, could quickly track the instruction current, divides the load current into active power and reactive power by using the intelligent FFT, and calculates the harmonic content rapidly and accurately. Then it sends PWM signal to internal IGBT's driver board to control IGBT on and off at 20KHZ frequency. Finally generates opposite phase compensation current on inverter induction, at the same time CT also detects the output current and negative feedback goes to DSP. Then DSP proceeds the next logical control to achieve more accurate and stable system.

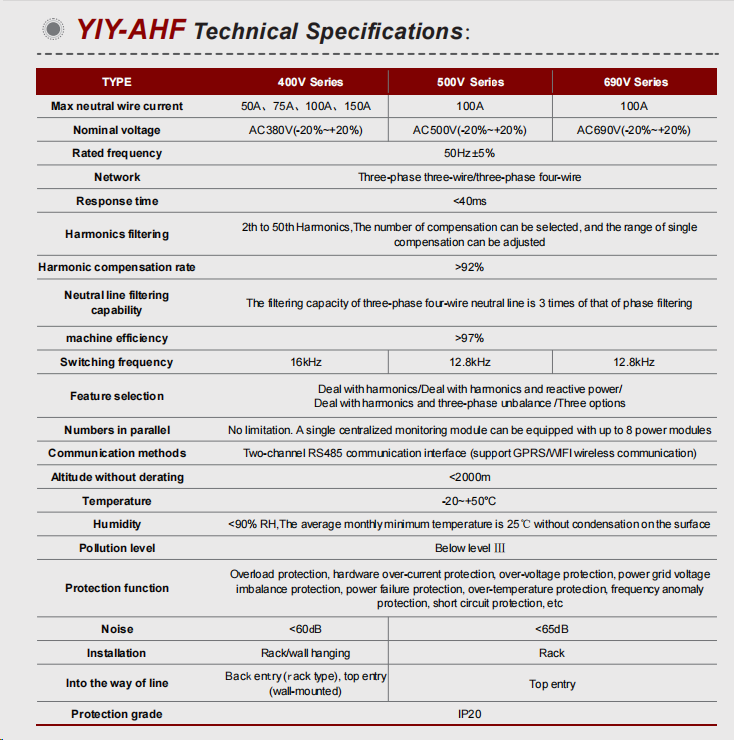

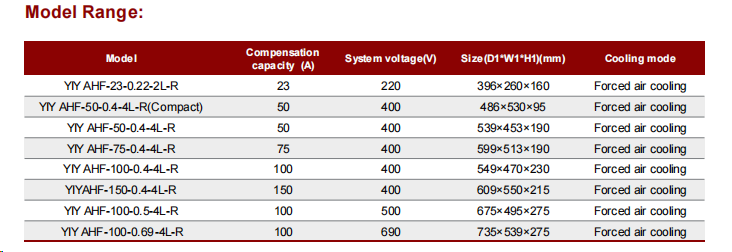

PS: The table is the standard specification, if you need other sizes, pls contact us for customization.
